Improving RAG Document Search Quality with Cohere Re-ranking

pip install label-studio==1.12
label-studio

!pip install git-python langchain langchain-community openai
langchain_openai cohere chromadb tiktoken label_studio_sdk tqdm

import os
os.environ['OPENAI_API_KEY']=""
os.environ['CO_API_KEY']=""
os.environ['LABEL_STUDIO_API_KEY']=""
os.environ['LABEL_STUDIO_URL']=""

import os

from git import Repo
from langchain.document_loaders.git import GitLoader
from langchain.text_splitter import MarkdownTextSplitter

# Download label-studio github repo to get md docs
repo_url = "https://github.com/HumanSignal/label-studio"
repo_path = "./data/label-studio-repo"
# if repo is already cloned, just open it
repo = Repo(repo_path) if os.path.exists(repo_path) else Repo.clone_from(repo_url, to_path=repo_path)
branch = repo.head.reference
loader = GitLoader(repo_path=repo_path, branch=branch, file_filter=lambda f: f.endswith('.md'))
data = loader.load()

# split docs into chunks for better embedding performance
text_splitter = MarkdownTextSplitter(chunk_size=500, chunk_overlap=250)
all_splits = text_splitter.split_documents(data)

# Split the documents into chunks and make embeddings
from langchain.embeddings import OpenAIEmbeddings
from langchain.vectorstores import Chroma
vectorstore = Chroma.from_documents(documents=all_splits, embedding=OpenAIEmbeddings())

# check how many docs we have in DB
vectorstore._collection.count()

# Out: 5272

question = "How to save tasks in storage?" vectorstore.similarity_search_with_relevance_scores(question)

# Out:

[(Document(page_content='Your window will look like this:\n<img src="/images/local-storage-settings2.png" alt="Screenshot of the local storage settings for user task." class="gif-border">\n\nClick **Add Storage**, but not use synchronization (don\'t touch button **Sync Storage**) after the storage creation, to avoid automatic task creation from storage files.', metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}), 0.8026583189549272),

(Document(page_content='After adding the storage, click **Sync** to collect tasks from the database, or make an API call to [sync import storage](/api#operation/api_storages_redis_sync_create).', metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}), 0.7915639829479804),

(Document(page_content='After adding the storage, click **Sync** to collect tasks from the bucket, or make an API call to [sync import storage](/api#operation/api_storages_localfiles_sync_create).\n\n### Tasks with local storage file references \nIn cases where your tasks have multiple or complex input sources, such as multiple object tags in the labeling config or a HyperText tag with custom data values, you must prepare tasks manually.', metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}), 0.7857555360938758),

(Document(page_content='After adding the storage, click **Sync** to collect tasks from the container, or make an API call to [sync import storage](/api#operation/api_storages_azure_sync_create).', metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}), 0.7818900168092748)]

from langchain_openai import ChatOpenAI
from langchain_core.output_parsers import StrOutputParser
from langchain_core.prompts import PromptTemplate


def generate_answer(question):
    template = """Use the following pieces of context to answer the question at the end.\n
    Context:\n{context}\n\n
    Question:\n{question}\n\n
    Your answer:
    """
    prompt = PromptTemplate.from_template(template)
    llm = ChatOpenAI(model="gpt-4o")

    # Retrieve documents based on the question
    # We use the high top k = 50, because we are going to rerank them
    retrieved_docs = vectorstore.similarity_search(question, k=50)

    # Format for passing context to the LLM
    context = "\n\n".join(doc.page_content for doc in retrieved_docs)
    formatted_input = prompt.format(context=context, question=question)

    # Run LLM
    response = llm.invoke(formatted_input)
    parsed_response = StrOutputParser().parse(response)

    # Return both the answer and the documents
    return parsed_response.content, retrieved_docs


answer = generate_answer("How to save tasks in storage?")
print(answer[0])

# Out:
To save tasks in storage using Label Studio, follow these steps:
1. **Open Label Studio**: Open Label Studio in your web browser.
2. **Navigate to Cloud Storage Settings**: For a specific project, go to **Settings > Cloud Storage**.
3. **Add Source Storage**:
    - Click **Add Source Storage**.
    - In the dialog box, select the storage type (e.g., Local Files, Amazon S3, Redis Database, etc.).
    - Fill out the necessary fields, such as **Storage Title** and other configuration parameters specific to the storage type you selected.
4. **Sync Storage**:
    - After adding the storage, click **Sync** to collect tasks from the storage bucket, database, or local directory.
    - Alternatively, you can make an API call to sync import storage (e.g., for S3, GCS, Azure, etc., using the provided API endpoints).
5. **Import Tasks**:
    - If you're importing JSON files directly, ensure that each JSON file contains one task if placed in a cloud storage bucket.
    - If you are uploading a JSON file from your machine, you can include multiple tasks in one JSON file and import it via the Label Studio GUI by going to the Data Manager page, clicking the **Import** button, and dragging and dropping the file.
6. **Add Target Storage (Optional)**:
    - For exporting completed annotations, repeat the steps for **Add Target Storage** to use a local file directory, cloud bucket, or database as the target storage. This ensures that annotated data is saved in the specified location.
### Additional Tips:
- **Complex Tasks**: For tasks with multiple input sources or complex configurations, you may need to prepare tasks manually and disable automatic task creation from media files.
- **Local Storage**: If you are using local storage, ensure that the **Absolute local path** leads to the directory with the files you want to include in the tasks.
- **Export Annotations**: After labeling, you can export the annotations from Label Studio, which are saved in JSON format in the specified target storage.
By following these steps, you can effectively save and manage tasks in Label Studio storage.

<View>
  <Style>
    .htx-text { white-space: pre-wrap; }
    .question {
    	font-size: 120%;
    	width: 800px;
    	margin-bottom: 0.5em;
    	border: 1px solid #eee;
    	padding: 0 1em 1em 1em;
    	background: #fefefe;
    }
    .answer {
    	font-size: 100%;
    	width: 800px;
    	background: #fff !important;
    	padding: 1em;
    }
    .doc-body {
    	white-space: pre-wrap;
    	overflow-wrap: break-word;
  		word-break: keep-all;
    }
    .doc-footer {
    	font-size: 85%;
    	overflow-wrap: break-word;
  		word-break: keep-all;
    }
    h3 + p + p { font-size: 85%; } /* doc id */
  </Style>

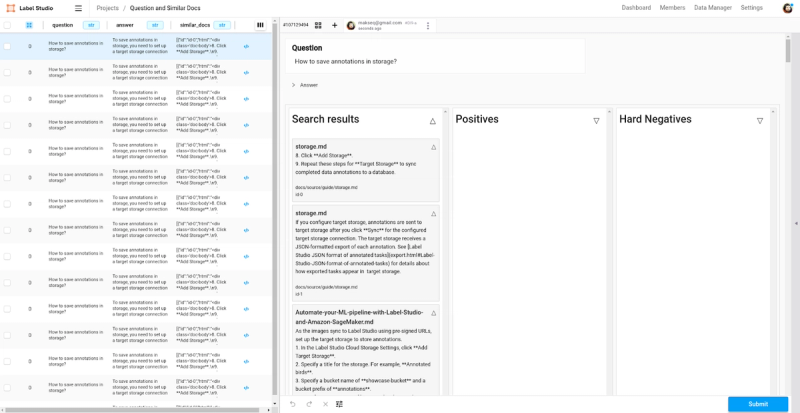

  <View className="question">
    <Header value="Question"/>
    <Text name="question" value="$question" />
  </View>

  <Collapse>
    <Panel value="Answer">
      <View className="answer">
        <Text name="answer" value="$answer" />
      </View>
    </Panel>
  </Collapse>

  <View style="margin-top: 2em">
    <List name="results" value="$similar_docs" title="Search results" />
    <Ranker name="rank" toName="results">
      <Bucket name="positives" title="Positives" />
      <Bucket name="hard_negatives" title="Hard Negatives" />
    </Ranker>
  </View>
</View>

{

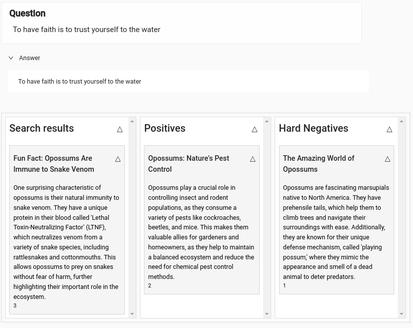

    "question": "When editing “Source Cloud Storage” of “AWS S3 (IAM role access)”, the three toggles below will always be turned on in the “Edit Source Storage” window.",
    "answer": "I recommend reaching out with specific details so that the support team can escalate the issue appropriately.",
    "similar_docs": [
      {
        "id": "id1",
        "title": "document 1",
        "html": "<i>Could you also comment</i> on the pre-signed url for images? I'm wondering why it needed to be turned on for PDF documents in S3. <a href='http://example.com'>link1</a>",
        "page_content": "Clean text without html tags here: Could you also comment on the pre-signed url for images? I'm wondering why it needed to be turned on for PDF documents in S3."
      },
      {
        "id": "id2",
        "title": "document 2",
        "html": "<h4>Please note!!!!</h4> The first link references the json file itself. <a href='http://example.com'>link 2</a>",
        "page_content": "Please note!!!! The first link references the json file itself."
      }
    ]
}

import os
import time
import requests
import logging

from label_studio_sdk import Client
from langchain.docstore.document import Document
from typing import List


logger = logging.getLogger(__name__)


class LabelStudioImportQuestionAndSimilarDocs:
    """ This class is used to import questions and similar documents to the Label Studio project.
    """

    def __init__(
        self,
        url: str,
        api_key: str = os.getenv("LABEL_STUDIO_API_KEY"),
        project_id: int = int(os.getenv("LABEL_STUDIO_PROJECT_ID", 0)),
    ):
        """ Initialize the Label Studio RAG client
        :param url: Label Studio URL
        :param api_key: Label Studio API key
        :param project_id: Label Studio project ID
        should return one of the following: "positives", "hard_negatives" or None
        """

        self.url = url
        self.api_key = api_key
        self.project_id = project_id
        if not self.api_key:
            raise ValueError("LABEL_STUDIO_API_KEY is not set")
        if not self.project_id:
            raise ValueError("LABEL_STUDIO_PROJECT_ID is not set")

        # Initialize the Label Studio SDK client
        self.ls = Client(url=self.url, api_key=self.api_key)
        self.project = self.ls.get_project(project_id)
        self.tasks = []

    def add_question_with_similar_docs(
        self,
        question: str,
        similar_docs: List[Document],
        answer: str
    ):
        """ Add a question and similar documents to Label Studio

        :param question: str, question to ask
        :param similar_docs: List[Document], list of similar documents to questions
        :param answer: str, generated answer to the question
        """
        # Initialize a task
        task = {"data": {"question": question, "similar_docs": [], "answer": answer}}
        list_items = task["data"]["similar_docs"]

        for i, doc in enumerate(similar_docs):
            # Prepare pretty view of the List cards
            body = (
                f"<div class='doc-body'>{doc.page_content}</div><br>" +
                f"<div class='doc-footer'>{doc.metadata.get('source', '')}</div>"
            )
            # Fill the task with List items from similar docs
            list_items.append({
                "id": 'id-' + str(i),
                "title": doc.metadata.get('file_name', 'Untitled'),
                "html": body,
                "metadata": doc.metadata,
                "page_content": doc.page_content,
            })

        logger.debug(f"Added question with {len(similar_docs)} similar docs to Label Studio")
        self.tasks.append(task)

    def import_tasks(self):
        """ Import collected tasks to Label Studio and flash self.tasks
        """
        if self.tasks:
            try:
                self.project.import_tasks(self.tasks)
            except requests.exceptions.HTTPError as e:
                logger.error(f"Error during importing tasks to Label Studio: {e}, retrying...")
                time.sleep(5)
                self.project.import_tasks(self.tasks)

            logger.info(f"Imported {len(self.tasks)} tasks to Label Studio")
            self.tasks = []

import json
from tqdm import tqdm


def generate_questions_for_training(number=256):
    """ Generate questions for training the Cohere reranker model
    """

    # Concatenate md files as a context for getting questions
    guide_dir = os.path.join(repo_path, 'docs', 'source', 'guide')
    files = [os.path.join(guide_dir, f) for f in os.listdir(guide_dir) if f.endswith('.md')]

    questions = []
    questions_per_file = number // len(files) + 1
    for file in tqdm(files):
        with open(file, 'r') as f:
            context = f.read()

        # Format for passing context to the LLM
        formatted_input = f"""1. Use the following documentation as a context and generate {questions_per_file} questions for it as a JSON list.\n
        2. Make your questions as varied as possible to cover the documentation well.\n
        3. For example: ["How to label data?", "What is the best way to annotate images?", ...]. You answer must be a JSON list with strings only.\n
        4. Never use ``` in the beginning and the end.\n
        5. Context:\n--------------------\n\n{context}\n\n--------------------\n\n
        Your questions as a JSON list:\n
        """
        llm = ChatOpenAI(model="gpt-4o")

        # Run LLM
        response = llm.invoke(formatted_input)
        parsed_response = StrOutputParser().parse(response)
        try:
            qs = json.loads(parsed_response.content)
        except json.JSONDecodeError:
            print('Error while parsing LLM answer as JSON:', parsed_response.content)
            continue

        questions += qs
    return questions


questions = generate_questions_for_training()
questions

100%|██████████| 75/75 [01:49<00:00,  1.46s/it]

['What is the first step to set up time series and video or audio labeling?',
 'Which version of Label Studio supports this time series and video/audio labeling feature?',
 'How do you synchronize the time series with the video in Label Studio?',
 'What are the requirements for the video and CSV file hosting for this labeling setup?',
...

# Initialize the Label Studio helper class for importing tasks
from tqdm import tqdm

ls = LabelStudioImportQuestionAndSimilarDocs(
    url="https://app.heartex.com",   # replace with your Label Studio URL
    api_key=os.getenv("LABEL_STUDIO_API_KEY"),  # replace with your Label Studio API key
    project_id=66886  # replace with your Label Studio Project ID
)

# ask lots of questions and get similar docs
for question in tqdm(questions):
    answer, docs = generate_answer(question)
    # add a question with similar docs to Label Studio
    ls.add_question_with_similar_docs(question, docs, answer)

# finally import all collected tasks
print('Import started ...')
ls.import_tasks()
print('Tasks have been imported to Label Studio!')

100%|██████████| 300/300 [00:00<00:00, 1033079.80it/s]

Import started ...
Tasks have been imported to Label Studio!

# Clone Label Studio ML backends repo
git clone --branch feat-cohere-reranker https://github.com/HumanSignal/label-studio-ml-backend.git
# Open the folder with OpenAI Reranker
cd label-studio-ml-backend/label_studio_ml/examples/rerankers/openai_reranker
# (Necessary) Edit docker-compose.yml and insert OpenAI and Label Studio API Keys and URL
# Run ML backend
docker-compose up --build  # or docker compose up --build
# (Optional) If Label Studio is outside, use ngrock (https://ngrok.com/)
# ./ngrok http 9090

import cohere


CUSTOM_MODEL_VERSION = "reranker-cohere-"
co = cohere.Client(api_key=os.getenv('CO_API_KEY', 'cohere-api-key'))  # replace with your Cohere API key

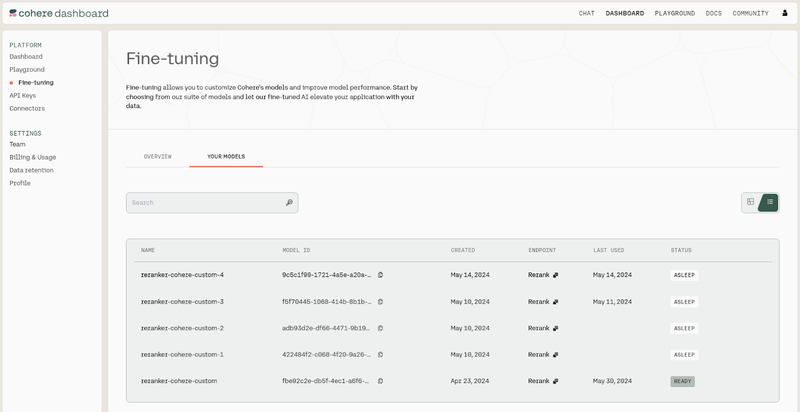

def get_cohere_model():
   # load the last trained Cohere model
   response = co.finetuning.list_finetuned_models()
   models = [
       model for model in response.finetuned_models
       if model.name.startswith(CUSTOM_MODEL_VERSION) and model.status in ["STATUS_READY", "STATUS_PAUSED"]
   ]
   # return the last model by created_at
   models = sorted(models, key=lambda x: x.created_at, reverse=True)
   if not models:
     raise Exception(f'No reranker-cohere- models found: {response.finetuned_models}')
   return models[0]


def rerank(query, docs, top_n=5, model="rerank-english-v3.0"):
   """ Rerank the documents using Cohere model.


   query: str - The query to rerank the documents.
   docs: List[Document] - The documents to rerank.
   top_n: int - The number of documents to return.
   model: str - id of your custom model, you can know it at the Cohere platform.

   return List[Document] - the reranked documents
   """
   texts = [doc.page_content for doc in docs]
   response = co.rerank(query=query, documents=texts, top_n=top_n, model=model)


   new_docs, scores = [], []
   for result in response.results:
       new_docs.append(docs[result.index])
       scores.append(result.relevance_score)


   return new_docs, scores


def generate_answer_with_reranker(question):
   template = """Use the following pieces of context to answer the question at the end.\n
   Context:\n{context}\n\n
   Question:\n{question}\n\n
   Your answer:
   """
   prompt = PromptTemplate.from_template(template)
   llm = ChatOpenAI(model="gpt-4o")
   retrieved_docs = vectorstore.similarity_search(question, k=50)


   # Rerank the docs using Cohere model
   model_name = get_cohere_model().id + '-ft'
   print('Cohere model is in use:', model_name, '\n')
   retrieved_docs, scores = rerank(question, retrieved_docs, model=model_name)
    # Format for passing context to the LLM
   context = "\n\n".join(doc.page_content for doc in retrieved_docs)
   formatted_input = prompt.format(context=context, question=question)
   response = llm.invoke(formatted_input)
   parsed_response = StrOutputParser().parse(response)
   return parsed_response.content, retrieved_docs


answer = generate_answer_with_reranker("How to save tasks in storage?")
print(answer[0])
print('\nDocuments used:\n', "\n".join([str(doc) for doc in answer[1]]))

Cohere model is in use: 1a2f46f8-b125-4acb-9590-092b814958bb-ft

To save tasks in target storage in Label Studio, follow these steps:
1. **Set Up Target Storage Connection:**
   - In the Label Studio UI, create a connection to your desired target storage (e.g., an S3 bucket).
2. **Sync Completed Annotations:**
   - After setting up the connection, click **Sync** to collect tasks from the bucket or make an API call to sync import storage.
   - Ensure you have the correct permissions and roles (e.g., IAM roles for S3).
3. **Submit or Update Tasks:**
   - When annotators click **Submit** or **Update** while labeling tasks, Label Studio saves the annotations in the database.
4. **Export Annotations:**
   - At any point, you can export annotations from Label Studio.
   - Configured target storage will receive a JSON-formatted export of each annotation.
5. **Sync to Target Storage:**
   - Once you have configured the target storage and clicked **Sync**, the target storage will receive the JSON exports of each labeled task.
   - You can find more details about the format in the Label Studio documentation, specifically the section on [Label Studio JSON format of annotated tasks](export.html#Label-Studio-JSON-format-of-annotated-tasks).
By following these steps, tasks will be saved in your configured target storage.

Documents used:
page_content='After adding the storage, click **Sync** to collect tasks from the bucket, or make an API call to [sync import storage](https://app.heartex.com/docs/api#operation/api_storages_s3s_sync_create).\n\n#### Create a target storage connection to S3 in the Label Studio UI\nIn the Label Studio UI, do the following to set up a target storage connection to save annotations in an S3 bucket with IAM role access set up:' metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}
page_content='```\n\n{% enddetails %}\n\n\n### Target storage\n\nWhen annotators click **Submit** or **Update** while labeling tasks, Label Studio saves annotations in the Label Studio database.' metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}
page_content='---\n\nAt any point in your labeling project, you can export the annotations from Label Studio. \n\nLabel Studio stores your annotations in a raw JSON format in the SQLite database backend, PostgreSQL database backend, or whichever cloud or database storage you specify as target storage. Cloud storage buckets contain one file per labeled task named `task_id.json`. For more information about syncing target storage, see [Cloud storage setup](storage.html).' metadata={'file_name': 'export.md', 'file_path': 'docs/source/guide/export.md', 'file_type': '.md', 'source': 'docs/source/guide/export.md'}
page_content='```\n9. Click **Add Storage**.\n10. Repeat these steps for **Target Storage** to sync completed data annotations to a bucket.\n\nAfter adding the storage, click **Sync** to collect tasks from the bucket, or make an API call to [sync import storage](/api#operation/api_storages_gcs_sync_create).' metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}
page_content='If you configure target storage, annotations are sent to target storage after you click **Sync** for the configured target storage connection. The target storage receives a JSON-formatted export of each annotation. See [Label Studio JSON format of annotated tasks](export.html#Label-Studio-JSON-format-of-annotated-tasks) for details about how exported tasks appear in  target storage.' metadata={'file_name': 'storage.md', 'file_path': 'docs/source/guide/storage.md', 'file_type': '.md', 'source': 'docs/source/guide/storage.md'}
